Understanding the Key Components of a Plate Brake Tester

In the realm of automotive diagnostics, a plate brake tester is an essential tool for assessing the performance and safety of braking systems. It measures how effectively a vehicle’s brakes function, helping ensure they meet safety standards. But what are the key components of a plate brake tester, and how do they work together? In this blog, we’ll break down the essential components and their functions.

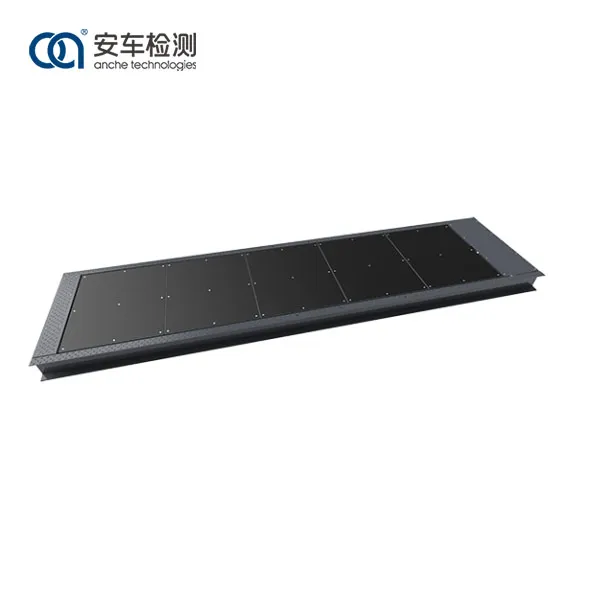

1. Testing Plates

At the heart of a plate brake tester are the testing plates. These plates are typically made of robust materials and are designed to withstand the weight of the vehicle. They provide a stable surface for the wheels to rest upon during testing. The plates are often adjustable to accommodate different vehicle sizes and types, ensuring accurate measurements.

2. Load Cells

Load cells are critical components that measure the braking force applied by the vehicle. These sensors are installed within the testing plates and convert the mechanical force exerted by the brakes into electrical signals. The data collected by the load cells is essential for calculating the braking efficiency and performance of the vehicle.

3. Control Unit

The control unit is the brain of the plate brake tester. It processes the signals from the load cells and other sensors, analyzing the data to provide accurate results. The control unit typically includes a user-friendly interface, allowing operators to input parameters, monitor testing conditions, and view results in real-time. Many modern testers come with digital displays for easy interpretation of the results.

4. Data Recording System

An efficient data recording system is essential for documenting test results. This component may be integrated into the control unit or function as a standalone system. It stores historical data, allowing operators to track the performance of individual vehicles over time. This feature is particularly useful for fleet management and compliance with safety regulations.

5. Safety Features

Safety is paramount when testing vehicle brakes. A plate brake tester should be equipped with various safety features, including:

- Emergency Stop Button: This allows operators to halt testing immediately in case of an emergency.

- Overload Protection: Prevents damage to the tester by ensuring that the force applied does not exceed the tester's rated capacity.

6. Calibration Mechanism

To ensure accuracy, plate brake testers must be regularly calibrated. A calibration mechanism allows operators to adjust the testing plates and load cells to account for any wear and tear or environmental changes. Regular calibration is crucial for maintaining the reliability and accuracy of test results.

A plate brake tester is a sophisticated device composed of various critical components that work together to assess vehicle braking performance. Understanding these components—testing plates, load cells, control units, data recording systems, safety features, and calibration mechanisms—provides insight into the functionality and importance of brake testing in ensuring vehicle safety. For automotive professionals, investing in a quality plate brake tester is essential for maintaining high standards of safety and performance.
