Setting Up a Solar Metal Roof Mount System: Key Components and Installation Steps

2024-06-20

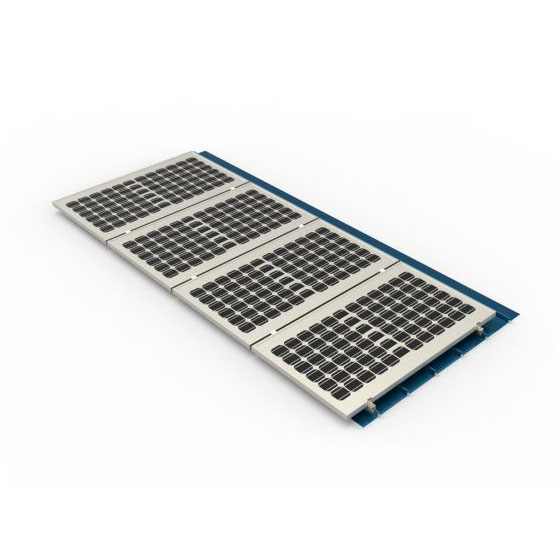

Harnessing solar energy is an effective way to reduce electricity costs and minimize environmental impact. For those with metal roofs, a Solar Metal Roof Mount System offers a reliable and efficient method to install solar panels. This blog will outline the key components and detailed installation steps involved in setting up a Solar Metal Roof Mount System.


Key Components of a Solar Metal Roof Mount System

1. Solar Panels:

  - The primary component that converts sunlight into electricity.

  - Panels come in various sizes and efficiencies, tailored to specific energy needs.

2. Mounting Rails:

  - Metal bars that provide a stable foundation for solar panels.

  - They are secured to the roof and support the panels.

3. Clamps and Fasteners:

  - Specialized clamps attach the solar panels to the mounting rails.

  - Fasteners secure the entire system to the metal roof, ensuring stability and durability.

4. Flashing:

  - Waterproof materials that prevent leaks where mounts penetrate the roof.

  - Critical for maintaining the integrity of the roof structure.

5. Mounting Brackets:

  - Devices that connect the mounting rails to the roof.

  - Designed specifically for different types of metal roofs (standing seam, corrugated, etc.).

6. Microinverters or String Inverters:

  - Convert the direct current (DC) produced by solar panels into alternating current (AC) for home use.

  - Microinverters are installed on each panel, while string inverters are installed on the ground or wall.


Installation Steps for a Solar Metal Roof Mount System

Step 1: Planning and Site Assessment

- Evaluate the Roof:

 - Inspect the roof’s condition, orientation, and angle.

 - Ensure the roof can support the additional weight of the solar panels.

- System Design:

 - Determine the number of panels needed based on energy requirements.

 - Plan the layout for optimal sunlight exposure and minimal shading.


Step 2: Gathering Permits and Approvals

- Local Regulations:

 - Obtain necessary permits from local authorities.

 - Ensure compliance with building codes and zoning laws.

- Utility Company Coordination:

 - Coordinate with the utility company for grid connection and metering.


Step 3: Installing Mounting Brackets and Rails

- Marking the Roof:

 - Measure and mark the locations for mounting brackets according to the planned layout.

- Attaching Brackets:

 - Secure the mounting brackets to the roof using appropriate fasteners.

 - Use flashing to seal around the penetrations and prevent leaks.

- Installing Rails:

 - Attach mounting rails to the brackets, ensuring they are level and properly aligned.


Step 4: Installing Solar Panels

- Mounting the Panels:

 - Position the solar panels on the rails and secure them with clamps.

 - Ensure panels are evenly spaced and aligned.

- Electrical Connections:

 - Connect the panels to the microinverters or string inverter.

 - Use appropriate cabling and connectors to ensure a secure electrical connection.


Step 5: Connecting to the Electrical System

- Inverter Installation:

 - Install the inverter in a suitable location, either on the roof (for microinverters) or on the ground/wall (for string inverters).

- Wiring:

 - Run the cabling from the panels to the inverter and then to the home’s electrical system.

 - Ensure all connections are secure and weatherproof.

- System Integration:

 - Connect the system to the utility grid, following local guidelines and safety protocols.

 - Install a monitoring system to track energy production and system performance.


Step 6: Inspection and Testing

- System Check:

 - Perform a thorough inspection to ensure all components are installed correctly.

 - Check for secure connections and proper alignment.

- Testing:

 - Test the system to verify it is producing electricity and operating efficiently.

 - Monitor the system for any issues and make necessary adjustments.


Step 7: Final Approval and Activation

- Inspection by Authorities:

 - Schedule an inspection by local authorities to approve the installation.

 - Obtain any final approvals and certifications.

- System Activation:

 - Once approved, activate the system and start generating solar power.

 - Monitor the system regularly to ensure optimal performance.


Conclusion

Setting up a Solar Metal Roof Mount System involves careful planning, precise installation, and adherence to safety protocols. By understanding the key components and following the detailed installation steps, homeowners can successfully install a solar energy system that enhances their home's energy efficiency and sustainability. Embracing solar power not only reduces energy costs but also contributes to a greener future.
