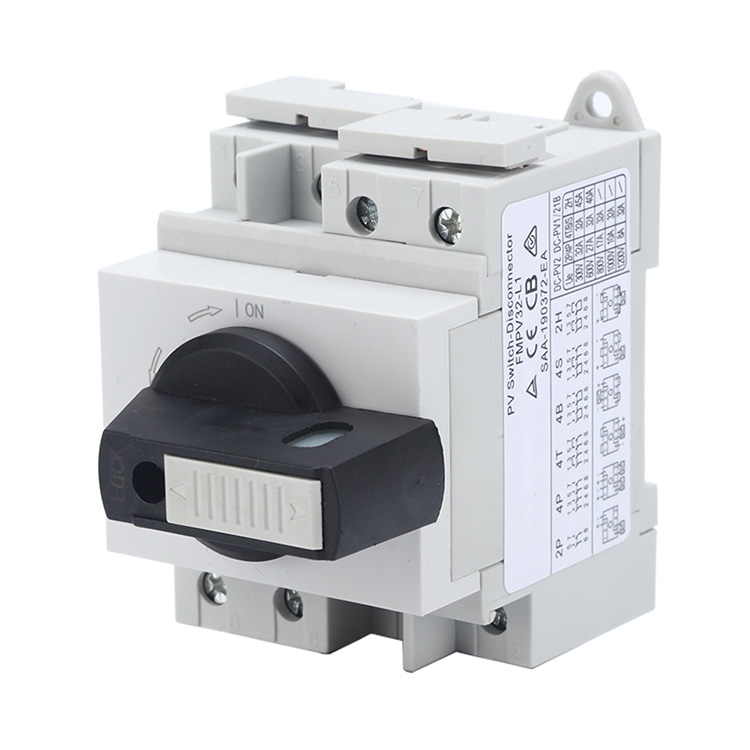

Power Flexibility: Exploring Multi-Pole Options in Din Rail Mounted Padlockable DC Isolator Switches

2024-01-22

Introduction:

In the intricate landscape of electrical systems, adaptability and customization are key considerations. Din Rail Mounted Padlockable DC Isolator Switches, serving as pivotal components in power control, offer users the flexibility of choosing multi-pole options within a single switch unit. In this blog post, we will delve into the significance of multi-pole configurations and how they cater to diverse electrical applications.

Understanding Multi-Pole Configurations:

A multi-pole configuration in an isolator switch refers to the inclusion of multiple poles within a single switch unit. Each pole represents an independent circuit path, allowing for the simultaneous isolation of multiple electrical circuits. Din Rail Mounted Padlockable DC Isolator Switches with multi-pole options provide users with the ability to control and disconnect several circuits with a single switch, enhancing efficiency and convenience.

Key Aspects of Multi-Pole Isolator Switches:

1. Number of Poles:

  The term "pole" in electrical switches refers to the number of independent circuits that can be controlled by the switch. Multi-pole isolator switches may have two or more poles, with each pole having its own set of contacts.

2. Simultaneous Circuit Control:

  Multi-pole isolator switches enable users to disconnect or isolate multiple circuits simultaneously. This is particularly useful in applications where multiple electrical paths need to be interrupted for safety or maintenance purposes.

3. Compact Design:

  Integrating multiple poles within a single switch unit results in a compact design. This is advantageous in installations where space is limited, as it allows for efficient utilization of panel real estate.

4. Cost and Space Efficiency:

  Utilizing a multi-pole isolator switch can be more cost-effective than installing individual single-pole switches for each circuit. Additionally, it reduces the overall space required in the electrical panel.

Benefits of Multi-Pole Isolator Switches:

1. Enhanced Safety:

  Simultaneously isolating multiple circuits with a single switch enhances safety during maintenance or emergency situations, reducing the risk of oversight in disconnecting individual circuits.

2. Streamlined Control:

  Multi-pole isolator switches streamline the control of interconnected circuits, making it easier for operators to manage complex electrical systems with fewer switches.

3. Space Optimization:

  The compact design of multi-pole switches optimizes space in control panels, making them suitable for installations where panel real estate is at a premium.

4. Cost Savings:

  Consolidating multiple circuits into a single switch unit can result in cost savings compared to the installation of individual switches for each circuit.

Applications of Multi-Pole Isolator Switches:

1. Industrial Control Panels:

  In manufacturing and industrial settings, where numerous circuits are interconnected, multi-pole isolator switches simplify control and enhance safety.

2. Renewable Energy Installations:

  Multi-pole switches find applications in renewable energy systems, such as solar installations, where the simultaneous isolation of multiple circuits is required.

3. HVAC Systems:

  Heating, ventilation, and air conditioning (HVAC) systems often involve multiple circuits. Multi-pole switches streamline control in these applications.

4. Complex Electrical Installations:

  In complex electrical installations where numerous circuits need to be managed efficiently, multi-pole isolator switches provide a centralized and organized solution.

Considerations When Choosing Multi-Pole Isolator Switches:

1. Number of Poles Required:

  Determine the specific number of poles required based on the number of circuits that need to be simultaneously isolated.

2. Current Ratings:

  Ensure that the multi-pole isolator switch has the appropriate current ratings for the circuits it will control.

3. Panel Compatibility:

  Verify that the switch is compatible with standard DIN rail mounting, especially if it will be integrated into a DIN rail-based control panel.

4. Compliance with Standards:

  Ensure that the multi-pole isolator switch complies with relevant safety and performance standards for its intended application.

Conclusion:

Din Rail Mounted Padlockable DC Isolator Switches with multi-pole configurations offer a versatile and efficient solution for managing multiple circuits within a single switch unit. The ability to simultaneously isolate several circuits enhances safety, streamlines control, and optimizes space in electrical panels. Whether in industrial, renewable energy, or HVAC applications, the adaptability and convenience of multi-pole isolator switches make them valuable components in the realm of power control and distribution.
