Navigating Connectivity: Exploring the Types and Configurations of Control System PCB Terminal Blocks

2024-04-12

In the dynamic landscape of industrial automation, where precision, reliability, and flexibility are paramount, choosing the right type and configuration of terminal blocks is crucial for optimizing system performance and efficiency. Control System PCB Terminal Blocks stand at the forefront of connectivity solutions, offering a diverse range of types and configurations to meet the unique requirements of various applications. Let's delve into the world of Control System PCB Terminal Blocks, exploring the different types and configurations available in the market and uncovering how they empower industrial stakeholders to navigate the complexities of connectivity with ease.

1. Wire-to-Board Terminal Blocks

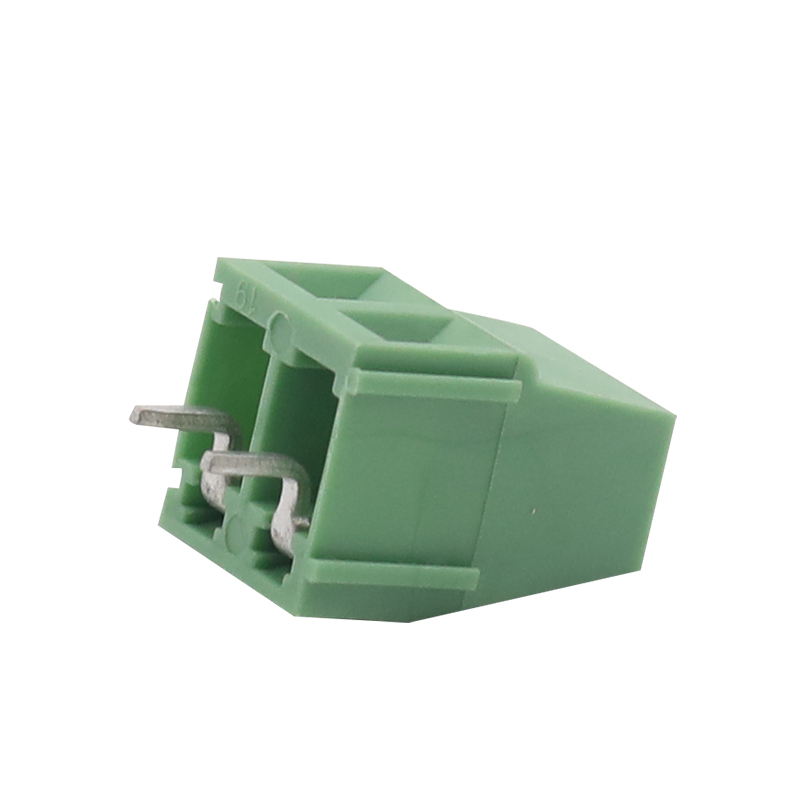

Wire-to-Board Terminal Blocks are designed for connecting wires or cables to printed circuit boards (PCBs). These terminal blocks feature a compact design with terminal contacts arranged in a row, allowing for easy termination of wires onto the PCB. Wire-to-Board Terminal Blocks come in various configurations, including:

- Single-Level: Basic terminal blocks with terminals arranged in a single row.

- Double-Level: Terminal blocks with terminals arranged in two rows, offering higher density and more connection options.

- Pluggable: Terminal blocks with plug-in connectors for quick and easy installation and replacement.

2. Board-to-Board Terminal Blocks

Board-to-Board Terminal Blocks are used for connecting PCBs together, enabling communication and signal transmission between different modules or subsystems within a control system. These terminal blocks feature a compact and modular design, with terminals arranged perpendicular to the PCB surface. Board-to-Board Terminal Blocks come in various configurations, including:

- Stackable: Terminal blocks with stackable headers and sockets for connecting multiple PCBs vertically.

- Right-Angle: Terminal blocks with terminals arranged at a right angle to the PCB surface, enabling horizontal or perpendicular connections between PCBs.

- Floating: Terminal blocks with floating connections that allow for slight misalignment between PCBs, providing flexibility in assembly.

3. Barrier Terminal Blocks

Barrier Terminal Blocks are used for high-current applications that require robust and reliable connections. These terminal blocks feature a barrier or partition between terminals, providing electrical isolation and preventing short circuits. Barrier Terminal Blocks come in various configurations, including:

- Single Row: Basic terminal blocks with terminals arranged in a single row, separated by barriers.

- Double Row: Terminal blocks with terminals arranged in two rows, offering higher density and more connection options.

- Feed-Through: Terminal blocks with terminals that pass through the barrier, allowing for easy connection of wires on both sides of the barrier.

4. Header Terminal Blocks

Header Terminal Blocks are used for connecting PCBs to external devices or interfaces, such as sensors, actuators, or communication modules. These terminal blocks feature male headers that plug into corresponding female connectors, providing a secure and reliable connection. Header Terminal Blocks come in various configurations, including:

- Straight: Terminal blocks with straight headers for direct connection to female connectors.

- Right-Angle: Terminal blocks with headers arranged at a right angle to the PCB surface, enabling horizontal or perpendicular connections.

- Surface-Mounted: Terminal blocks with surface-mount headers for easy integration onto PCBs without through-holes.

5. Specialty Terminal Blocks

In addition to the standard types mentioned above, there are various specialty terminal blocks designed to meet specific application requirements. These include:

- DIN Rail-Mounted: Terminal blocks designed for mounting onto DIN rails, commonly used in industrial control panels and enclosures.

- Fuse Terminal Blocks: Terminal blocks with built-in fuse holders for overcurrent protection.

- Ground Terminal Blocks: Terminal blocks dedicated to grounding connections, ensuring electrical safety and integrity.

- LED Terminal Blocks: Terminal blocks with integrated LED indicators for visual status indication.

Conclusion

In conclusion, the world of Control System PCB Terminal Blocks is vast and diverse, offering a multitude of types and configurations to meet the unique requirements of industrial automation and control systems. From wire-to-board and board-to-board terminal blocks to barrier, header, and specialty terminal blocks, industrial stakeholders have a wide range of options to choose from to optimize system performance, reliability, and flexibility. By understanding the different types and configurations available in the market, engineers and designers can select the right terminal blocks to suit their specific application needs, empowering them to navigate the complexities of connectivity with confidence and ease.
