An Overview of CM Series Rod End Bearings: Precision and Performance in Motion

Introduction

Rod end bearings are a crucial component in various mechanical systems, providing a simple yet effective way to accommodate misalignment and transfer motion in different applications. Among the many types of rod end bearings available, the CM Series stands out for its precision, durability, and versatility. This blog will explore the key features, applications, and benefits of CM Series Rod End Bearings, helping you understand why they are a preferred choice in various industries.

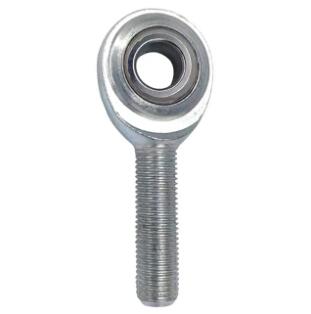

What Are CM Series Rod End Bearings?

Rod end bearings, also known as heim joints or rose joints, are mechanical articulating joints that allow for motion transfer between two components while accommodating misalignment. The CM Series Rod End Bearings are a specific type of these bearings, designed to meet high-performance standards in both commercial and industrial applications.

The CM Series typically features a ball swivel within a housing, providing a wide range of motion and the ability to absorb angular misalignment. These bearings are often used in conjunction with other mechanical components, such as linkages and control arms, to facilitate smooth and efficient movement.

Key Features of CM Series Rod End Bearings

1. High-Quality Materials:

  The CM Series Rod End Bearings are manufactured using high-grade materials, such as stainless steel or alloy steel, ensuring superior strength and resistance to wear and corrosion. This makes them suitable for use in demanding environments where durability is essential.

2. Precision Engineering:

  These rod end bearings are engineered with tight tolerances to provide accurate motion transfer and reduce play or backlash. The precision design ensures smooth operation, even under high loads or in applications requiring high-speed motion.

3. Self-Lubricating Options:

  Some models within the CM Series offer self-lubricating liners, which reduce the need for maintenance and extend the bearing’s lifespan. This feature is particularly beneficial in applications where regular lubrication is challenging or impractical.

4. Wide Range of Sizes and Configurations:

  The CM Series is available in various sizes and configurations, allowing for easy integration into different systems. Whether you need a male or female thread, right-hand or left-hand orientation, the CM Series offers the flexibility to meet your specific requirements.

5. Corrosion Resistance:

  For applications exposed to harsh environments, the CM Series offers corrosion-resistant options. These bearings are coated or made from materials that withstand exposure to moisture, chemicals, and other corrosive elements, ensuring long-term reliability.

Applications of CM Series Rod End Bearings

The versatility and durability of CM Series Rod End Bearings make them ideal for a wide range of applications across various industries. Some common use cases include:

- Automotive Industry: In automotive systems, CM Series Rod End Bearings are used in suspension components, steering linkages, and throttle control systems. Their ability to handle high loads and accommodate misalignment makes them essential for ensuring smooth and responsive vehicle performance.

- Aerospace and Defense: These bearings are also used in the aerospace and defense sectors, where precision and reliability are critical. Applications include flight control systems, landing gear, and actuator linkages, where the bearings must withstand extreme conditions.

- Industrial Machinery: In industrial settings, CM Series Rod End Bearings are employed in machinery that requires precise movement and alignment, such as robotics, conveyors, and material handling equipment. Their robustness and flexibility ensure that the machinery operates efficiently and without interruption.

- Agriculture Equipment: The agricultural industry relies on these bearings for equipment such as tractors, harvesters, and sprayers. The CM Series Rod End Bearings provide the necessary durability and performance to withstand the harsh conditions often encountered in farming operations.

Benefits of Using CM Series Rod End Bearings

1. Enhanced Performance: The precision engineering of CM Series Rod End Bearings ensures accurate motion transfer, reducing the likelihood of system inefficiencies or failures. This leads to improved overall performance in the application.

2. Long-Lasting Durability: Constructed from high-quality materials, these bearings offer exceptional durability, even in harsh environments. This reduces the need for frequent replacements, lowering maintenance costs and downtime.

3. Versatility: With a wide range of sizes and configurations available, the CM Series can be easily adapted to different applications, making it a versatile solution for various industries.

4. Maintenance Efficiency: The availability of self-lubricating options simplifies maintenance routines, allowing for longer intervals between servicing and reducing the overall maintenance burden.

Conclusion

CM Series Rod End Bearings represent the intersection of precision, durability, and versatility, making them a reliable choice for a broad range of applications. Whether in automotive, aerospace, industrial machinery, or agriculture, these bearings offer the performance and longevity needed to keep systems running smoothly. By understanding the features and benefits of the CM Series, you can make informed decisions when selecting rod end bearings for your specific needs.
